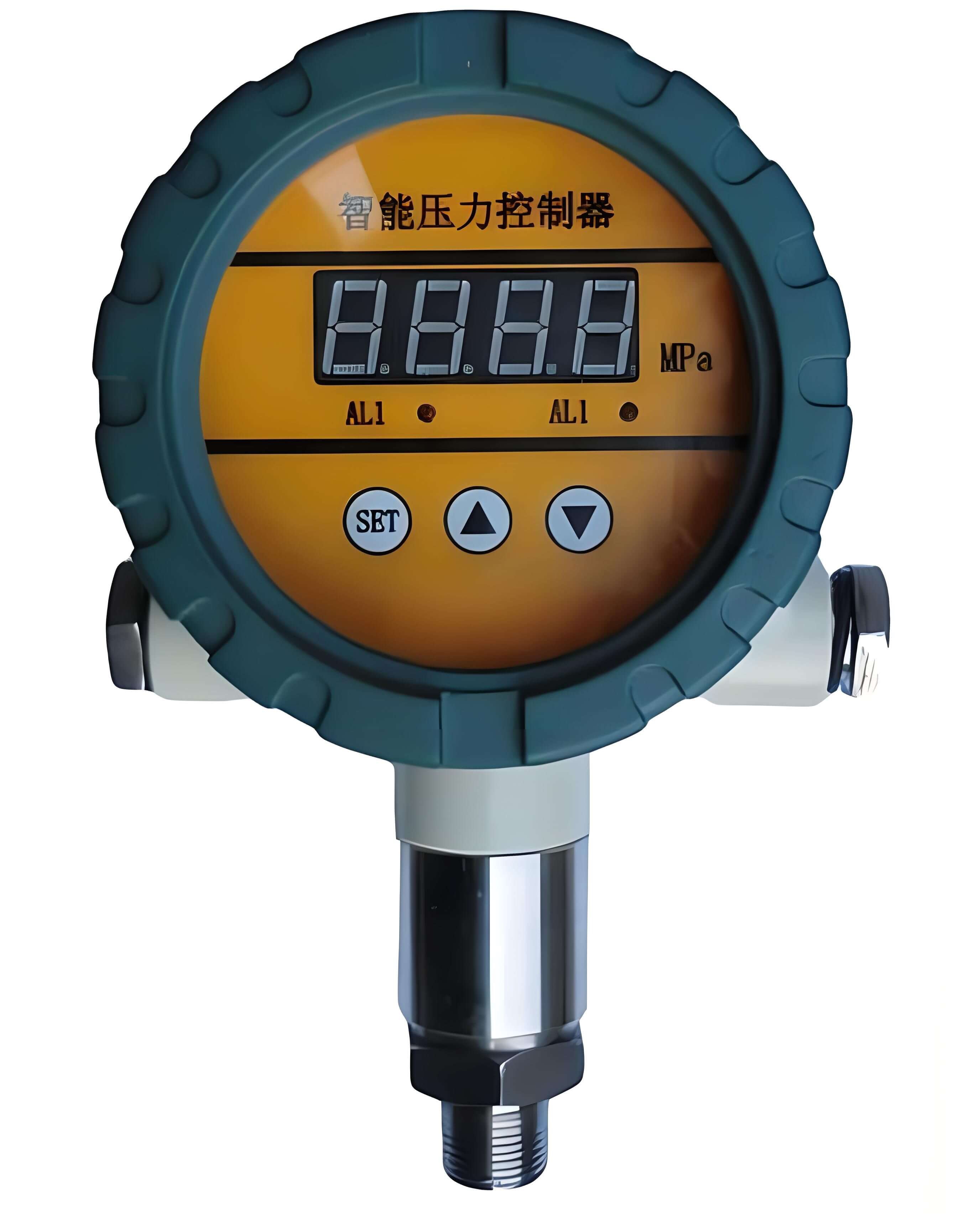

Intelligent cylinder digital pressure controller

alter-text

Product parameters

ParameterValue
Measuring mediumwater, gas, oil
Measurement range0.20 Mpa, customizable
Signal outputRS485
Communication ProtocolModbus-RTU protocol
Power supply12-30VDC external power supply
Measurement accuracy±0.5％FS、±1.0%FS
Current consumption3mA
Overload pressure200％FS
Shell material304 stainless steel
Ambient temperature and humidityTemperature: 0-60 ° C Humidity: 0-80% Rh
Pressure InterfaceM10*1(others need to be customized)
Protection levelIP65
